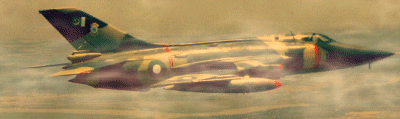

A 5
GENERAL
Single Seat Fighter Ground Attack Aircraft
Manufacturer: CATIC, China
Service in PAF: 1983 to date
TECHNICAL DATA
Length / Span: 49.0 / 30.0 Feet
Engine / Thurst: 2 x WP - 6 / 2 x 7,163
Lbs
Max T/off Wt: 26,400 Lbs
WEAPONS
Air-Air Missiles: AIM - 9
Guns: 3 x 30 mm Cannons
Bombs: 500 / 750 Lbs Durandal
MK - 20 BL - 775
Rockets: 14 x 68 mm Rockets
PERFORMANCE
Max Speed: 1,220 KM mach 1.5
Service Ceiling: 50,000 Feet
Strike Radius: Hi-Lo-Hi 150 NM
Lo-Lo-Lo 110 NM
Single Seat Fighter Ground Attack Aircraft
Manufacturer: CATIC, China
Service in PAF: 1983 to date
TECHNICAL DATA
Length / Span: 49.0 / 30.0 Feet
Engine / Thurst: 2 x WP - 6 / 2 x 7,163
Lbs
Max T/off Wt: 26,400 Lbs
WEAPONS
Air-Air Missiles: AIM - 9
Guns: 3 x 30 mm Cannons
Bombs: 500 / 750 Lbs Durandal
MK - 20 BL - 775
Rockets: 14 x 68 mm Rockets
PERFORMANCE
Max Speed: 1,220 KM mach 1.5
Service Ceiling: 50,000 Feet
Strike Radius: Hi-Lo-Hi 150 NM
Lo-Lo-Lo 110 NM
F 7P
General
Single Seat, Fighter Interceptor
Manufacturer: Chengdu, China
Service in PAF: 1988 Todate
Technical Data
Length / Span: 48.82 / 23.46 feet
Engine / Thrust: / 3420 Lbs
Max T/Off Wt: 19,800 Lbs
Weapons
Air-Air Missiles: AIM-9 P,
Guns : 2 x 30 mm Canons
Rockets 68 mm Rx
Bombs : MK - 82, MK - 20
Performance
Max Speed : 640 NM / 2.05 Mach
Service Ceiling : 54,000 feet
Range : 477 NM
Strike Radius: 80 NM
Single Seat, Fighter Interceptor
Manufacturer: Chengdu, China
Service in PAF: 1988 Todate
Technical Data
Length / Span: 48.82 / 23.46 feet
Engine / Thrust: / 3420 Lbs
Max T/Off Wt: 19,800 Lbs
Weapons
Air-Air Missiles: AIM-9 P,
Guns : 2 x 30 mm Canons
Rockets 68 mm Rx
Bombs : MK - 82, MK - 20
Performance
Max Speed : 640 NM / 2.05 Mach
Service Ceiling : 54,000 feet
Range : 477 NM
Strike Radius: 80 NM

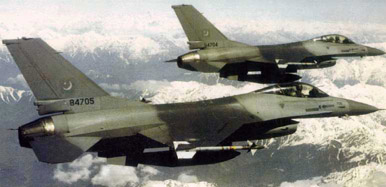

F 16
General
All Weather, Single Seat Multi Role Fighter / Bomber
Manufacturer: Lockhead Martin, USA
Service in PAF: 1983 - Todate
Technical Data
Length / Span: 49.6 / 32.1 feet
Engine / Thrust: 1 x F-100 PW-200 / 220
25,000 Lbs
Max T/Off Wt: 37,500 Lbs
Weapons
Air-Air Missiles: AIM-9 L / AIM-9 P
Guns: M-61, 6 Barrel Gatling Gun
Air-Surface Missile: AGM-65 "Maverick"
Bombs: 500/2000 Lbs & Laser Guided Bombs
MK - 20 Cluster Bombs
Performance
Max Speed: 800 Knots or Mach 2.0
Service Ceiling: 80,000 feet
Range: 2280 Miles
Strike Radius: 575 Miles
All Weather, Single Seat Multi Role Fighter / Bomber
Manufacturer: Lockhead Martin, USA
Service in PAF: 1983 - Todate
Technical Data
Length / Span: 49.6 / 32.1 feet
Engine / Thrust: 1 x F-100 PW-200 / 220
25,000 Lbs
Max T/Off Wt: 37,500 Lbs
Weapons
Air-Air Missiles: AIM-9 L / AIM-9 P
Guns: M-61, 6 Barrel Gatling Gun
Air-Surface Missile: AGM-65 "Maverick"
Bombs: 500/2000 Lbs & Laser Guided Bombs
MK - 20 Cluster Bombs
Performance
Max Speed: 800 Knots or Mach 2.0
Service Ceiling: 80,000 feet
Range: 2280 Miles
Strike Radius: 575 Miles
F 6
General
Single Seat, Fighter Interceptor
Manufacturer: CATIC, China
Service in PAF: 1965 Todate
Technical Data
Length / Span: 40.0 / 30.0 feet
Engine / Thrust: 2 x RD-9B / 2 x 7,200 Lbs
Max T/Off Wt: 19,362 Lbs
Weapons
Air-Air Missiles: 2 x AIM-9P
Guns: 3 x 30 mm Cannons
Rockets: 68 mm Rx
Bombs: 2 x 500 Lbs
Performance
Max Speed: 1030 MPH / 1.4 Mach
Service Ceiling: 56,750 feet
Range: 1000 Miles
Strike Radius: 150 Mil
Single Seat, Fighter Interceptor
Manufacturer: CATIC, China
Service in PAF: 1965 Todate
Technical Data
Length / Span: 40.0 / 30.0 feet
Engine / Thrust: 2 x RD-9B / 2 x 7,200 Lbs
Max T/Off Wt: 19,362 Lbs
Weapons
Air-Air Missiles: 2 x AIM-9P
Guns: 3 x 30 mm Cannons
Rockets: 68 mm Rx
Bombs: 2 x 500 Lbs
Performance
Max Speed: 1030 MPH / 1.4 Mach
Service Ceiling: 56,750 feet
Range: 1000 Miles
Strike Radius: 150 Mil

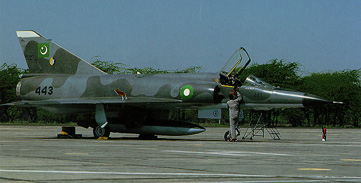

MIRAGE
General
Single Seat, Fighter Aircraft
Manufacturer :AMD France
Service in PAF :1968 to date
Technical Data
Length / Span : 51.05 / 26.96 feet
Engine / Thrust : 1 x Atar / 13,230 Lbs
Max T/Off Wt : 30,200 Lbs
Weapons
Air-Air Missiles : AIM-9P & R-550
Guns : 2 x 30 mm DEFA
Antiship Missiles : AM-39 "Exocet"
Bombs : 500 / 750 Lbs & Runway Durandal BL-755
Performance
Max Speed : 1430 MPH / Mach 2.0 / 750 KTS
Service Ceiling : 50,000 feet
Max Range : 2180 miles
Strike Radius : 560 Miles
Single Seat, Fighter Aircraft
Manufacturer :AMD France
Service in PAF :1968 to date
Technical Data
Length / Span : 51.05 / 26.96 feet
Engine / Thrust : 1 x Atar / 13,230 Lbs
Max T/Off Wt : 30,200 Lbs
Weapons
Air-Air Missiles : AIM-9P & R-550
Guns : 2 x 30 mm DEFA
Antiship Missiles : AM-39 "Exocet"
Bombs : 500 / 750 Lbs & Runway Durandal BL-755
Performance
Max Speed : 1430 MPH / Mach 2.0 / 750 KTS
Service Ceiling : 50,000 feet
Max Range : 2180 miles
Strike Radius : 560 Miles
T 33
General
Two Seat Jet Engine Trainer / Reconnaissance
Manufacturer : Lockheed USA
Service in PAF : 1955 - 1993
Technical Data
Length / Span : 37.09 / 38.11 feet
Engine / Thrust :1 x J33-A-23 / 3,000 Lbs
Max T/Off Wt : 11,965 Lbs
Weapons
Guns : 2 x 0.5 inch MGs
Rockets : 8 x 2.7 inch
Bombs : 2 x 1000 Lb
Performance
Max Speed : 600 MPH
Service Ceiling : 47,500 feet
Endurance : 3:05 hours
Two Seat Jet Engine Trainer / Reconnaissance
Manufacturer : Lockheed USA
Service in PAF : 1955 - 1993
Technical Data
Length / Span : 37.09 / 38.11 feet
Engine / Thrust :1 x J33-A-23 / 3,000 Lbs
Max T/Off Wt : 11,965 Lbs
Weapons
Guns : 2 x 0.5 inch MGs
Rockets : 8 x 2.7 inch
Bombs : 2 x 1000 Lb
Performance
Max Speed : 600 MPH
Service Ceiling : 47,500 feet
Endurance : 3:05 hours
T 37
General
Two Seat Jet Engine Trainer
Manufacturer :Cessna USA
Service in PAF :19 - Todate
Technical Data
Length / Span : 29.03 / 33.0 feet
Engine / Thrust : 2 x J69-T-25 / 2 x 1,025 Lbs
Max T/Off Wt : 6,574 Lbs
Weapons
Guns : 2 x Pods for Underwing 0.5 inch MGs
Rockets : 4 x 2.7 inch
Bombs : 250 Lb Bombs
Performance
Max Speed : 425 MPH
Service Ceiling : 38,700 feet
Endurance : 3:15 hours
Two Seat Jet Engine Trainer
Manufacturer :Cessna USA
Service in PAF :19 - Todate
Technical Data
Length / Span : 29.03 / 33.0 feet
Engine / Thrust : 2 x J69-T-25 / 2 x 1,025 Lbs
Max T/Off Wt : 6,574 Lbs
Weapons
Guns : 2 x Pods for Underwing 0.5 inch MGs
Rockets : 4 x 2.7 inch
Bombs : 250 Lb Bombs
Performance
Max Speed : 425 MPH
Service Ceiling : 38,700 feet
Endurance : 3:15 hours
TU 16
General
Three Seater Bomber Aircraft
Manufacturer: CATIC, China
Service in PAF: 1966 - 1969
Technical Data
Length / Span: 57.11 / 70.05 feet
Engine / Thrust: 2 x VK1-A / 2 x 5,952 Lbs
Max T/Off Wt: 46,738 Lbs
Weapons
Guns: 2 x 23 mm Cannons in Nose 2 x 23 mm Canons in Tail
Bombs: 6,600 Lbs in Bomb Bay
Rockets: 14 x 68 mm Rockets
Performance
Max Speed: 497 MPH
Service Ceiling: 40,350 feet
Range: 1,490 Miles
Three Seater Bomber Aircraft
Manufacturer: CATIC, China
Service in PAF: 1966 - 1969
Technical Data
Length / Span: 57.11 / 70.05 feet
Engine / Thrust: 2 x VK1-A / 2 x 5,952 Lbs
Max T/Off Wt: 46,738 Lbs
Weapons
Guns: 2 x 23 mm Cannons in Nose 2 x 23 mm Canons in Tail
Bombs: 6,600 Lbs in Bomb Bay
Rockets: 14 x 68 mm Rockets
Performance
Max Speed: 497 MPH
Service Ceiling: 40,350 feet
Range: 1,490 Miles
F 86

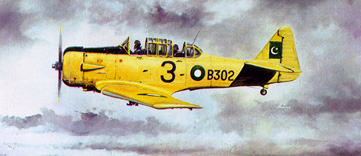

Harvard T-6 G
General
Single Seat, Fighter Ground Attack Aircraft
Manufacturer : (F) North America, USA / (F)Canadair, Canada
Service in PAF : 1956 - 1980
Technical Data
Length / Span : 38.06 / 37.01 feet
Engine / Thrust : (F) 1 x J47-GE-27 / 5,970 Lbs
(E) 1 x Orenda 14 7,200 Lbs
Max T/Off Wt : (F) 19500 /
(E) 16,860 Lbs
Weapons
Air-Air Missiles : AIM-9B
Guns : 6 x 0.5 inch Guns
Rockets 57 mm Rockets
Bombs : 500/1000 Lbs
Performance
Max Speed : 670 MPH
Service Ceiling : 54,000 feet
Range : 53,000 feet
Strike Radius: 420 Miles
Single Seat, Fighter Ground Attack Aircraft
Manufacturer : (F) North America, USA / (F)Canadair, Canada
Service in PAF : 1956 - 1980
Technical Data
Length / Span : 38.06 / 37.01 feet
Engine / Thrust : (F) 1 x J47-GE-27 / 5,970 Lbs
(E) 1 x Orenda 14 7,200 Lbs
Max T/Off Wt : (F) 19500 /
(E) 16,860 Lbs
Weapons
Air-Air Missiles : AIM-9B
Guns : 6 x 0.5 inch Guns
Rockets 57 mm Rockets
Bombs : 500/1000 Lbs
Performance
Max Speed : 670 MPH
Service Ceiling : 54,000 feet
Range : 53,000 feet
Strike Radius: 420 Miles
General
Two Seater Piston Engine Trainer
Manufacturer :North American USA
Service in PAF :1947 - 1976
Technical Data
Length / Span : 229.0 / 42.0 feet
Engine / Thrust : 1 x P&W R-1340-ANI / 550 hp
Max T/Off Wt : 5,300 Lbs
Weapons
Guns : 2 x 0.303 inch MGs Rockets & Fragmentation Bombs
Performance
Max Speed : 205 MPH
Service Ceiling : 25,100 feet
Two Seater Piston Engine Trainer
Manufacturer :North American USA
Service in PAF :1947 - 1976
Technical Data
Length / Span : 229.0 / 42.0 feet
Engine / Thrust : 1 x P&W R-1340-ANI / 550 hp
Max T/Off Wt : 5,300 Lbs
Weapons
Guns : 2 x 0.303 inch MGs Rockets & Fragmentation Bombs
Performance
Max Speed : 205 MPH
Service Ceiling : 25,100 feet
