General
Long Range, Surveillance cum GCI Radar
Origin: Bendix Corporation, USA
Technical Data
Max Range: 224 Miles
Max Altitude: 100,000 feet
Features: Integrated height finding an Anti-jamming facilities

General
Manpad, Short range Anti Aircraft Missile
Origil: KRL, Pakistan

Technical Data
Length: 1.5 meters
Diameter: 07.2 cm
Weight: 15.0 Kg
Warhead: 0.37 Kg Shaped Charge
Propulsion: Solid Propellant
Guidance: I R Homing

General
Medium Range, Surface to Air Missile System
Origin: China

Technical Data
Length: 10.7 meters
Diameter: 70.0 cm
Tail Span: 54.0 cm
Weight: 2300.0 Kg
Warhead: 130 Kg High Explosive
Propulsion: Solid Propellant Booser with Liquid Propellant Sustainer
Guidance: Radio Command
Max Speed: 3.5 Mach
Max Range: 60 KM
Ceiling: 85,000 feet

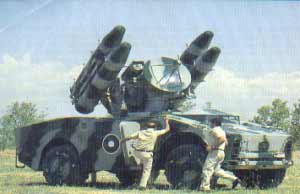

General
Mobile, Automatic, All Weather, Surface to Air Missile System
Origin: France

Technical Data
Length: 2.94 Meters
Diameter: 16.0 Cm
Weight: 80.0 Kg
Warhead: 15 Kg High Explosive
Propulsion: Single Stage Solid Propellant
Guidance: Command to Line of Sight
Max Speed: 2.3 Mach
Max Range: 11 KM

General
Mobile, Long Range, Surveillance cum GCI Radar
Origin: Marconi Radar Systems, UK
Technical Data
Max Range : 240 Miles
Max Altitude : 120,000 Feet
Features: Integrated Height Finding and Anti-jamming facili

General
Set of variable short range mobile radars
with optimum low coverage
Origin: Westinghouse, USA
Technical Data
Max Range: 25 - 50 Miles
Max Altitude: 15,000 Feet
Features: Performance improving and Anti-jamming facilities

General
Mobile, Long Range, Automated, (3-D) Surveillance cum GCI Radar
Origin: Westinghouse, USA
Technical Data
Max Range: 240 Miles
Max Altitude: 100,000 Feet
Features: Performance improving and Anti-jamming facilities

General
Mobile, Medium Range, Surveillance cum GCI Radar
Origin: Plassey, UK
Technical Data
Max Range: 100 Miles
Max Altitude: 50,000 feet
Features: Performance improving and Anti-jamming facilities

General
Man-pad, Short range, Anti Aircraft Missile
Origin: Matra, France

Technical Data
Length: 1.86 meters
Diameter: 09.2 cm
Wing Span: 20 cm
Weight: 19.0 Kg
Warhead: 3 Kg High Explosive
Propulsion: Solid Propellant
Guidance: I R Homing
